1611 20m/23m Multiple Unit Motorising unit
Etched in 10 thou." brass, with other cast, etched and moulded components.

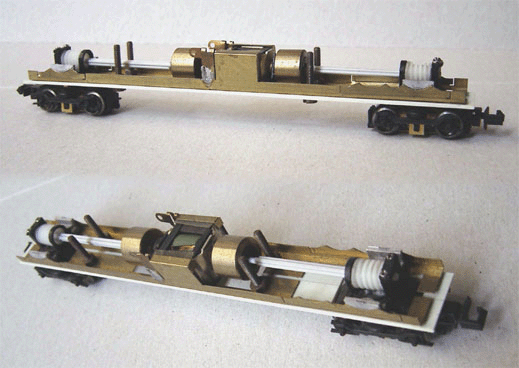

Here
shown in 23m configuration with ref:1700 'Sprinter' bogies
This unit was developed to power our range of EMU conversion kits. It uses the motor and geared bogies from the Bachmann Plus or Spectrum F-7 diesel loco. New moulded drive shafts are provided to make the conversion easy at the two set lengths (suitable for full-length Mk.1 or Mk.3 coaches), though it is possible to adapt the unit for other bogie centres. The Drive shafts are moulded in styrene and are shaped so that it is quite easy to 'splint' them using plastic strips.
Go to Paul Cheffing's site for more pictures of the components being installed in a 4-CIG unit (20m format).
